Seismographs are scientific instruments used to detect and record earthquakes. They help scientists measure ground motion caused by seismic waves traveling through Earth.
When an earthquake occurs:
- the ground shakes
- seismic waves spread outward
- seismographs record the movement
These instruments allow scientists to:
- locate earthquakes
- estimate magnitude
- study seismic wave behavior
- monitor tectonic activity worldwide
Modern seismographs are extremely sensitive and can detect tiny vibrations from earthquakes occurring thousands of kilometers away.
Learn more → seismic instruments explained
Main Parts of a Seismograph
Main Components of a Seismograph
Core parts that help seismographs detect and record earthquake motion.

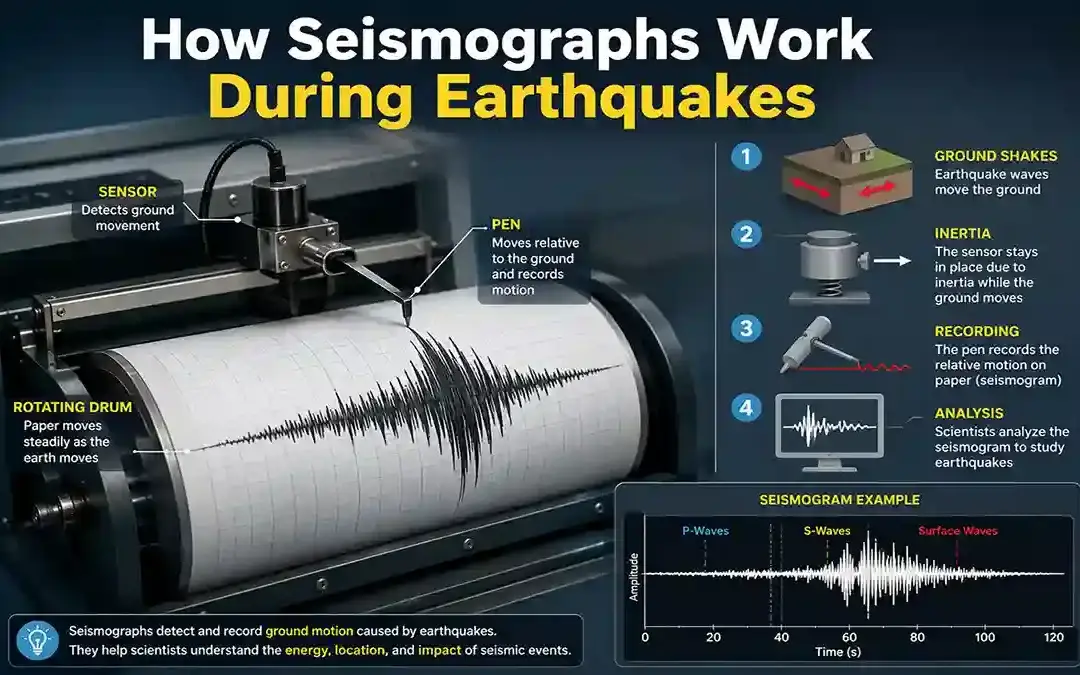

What Is a Seismograph?
A seismograph is a device that records seismic waves produced by earthquakes.
The system usually includes:
- a motion sensor
- a suspended mass
- a recording mechanism
The recorded earthquake signal is called a seismogram.
How Seismographs Detect Ground Motion
During an earthquake:
- the ground moves
- the seismograph frame moves with it
- the suspended mass stays relatively still because of inertia
This difference in movement is measured and recorded.
The recorded motion shows how seismic waves travel through Earth.
The Suspended Mass Explained
The suspended mass is one of the most important parts of a seismograph.
Why It Matters
When the ground shakes:
- the instrument frame moves
- the heavy mass resists movement briefly
This creates measurable relative motion. That motion becomes the earthquake recording.
From Mechanical Seismographs to Digital Systems
Older seismographs:
- used pens and rotating paper drums
- physically drew wave patterns
Modern digital systems:
- use electronic sensors
- process data instantly
- send information worldwide in real time
Digital technology greatly improved earthquake monitoring.
What Seismographs Record
| Measurement | Purpose |
|---|---|
| Wave arrival times | Locate earthquakes |
| Ground motion strength | Estimate shaking |
| Wave patterns | Identify seismic wave types |
| Duration of shaking | Analyze earthquake behavior |
Seismographs provide essential earthquake data.
P Waves and S Waves on Seismographs
Seismographs record:
- fast P waves first
- slower S waves afterward
- surface waves later
Scientists compare wave arrival times to calculate earthquake distance and location.
Learn more → earthquake wave types explained
How Scientists Locate Earthquakes
Scientists compare recordings from multiple seismograph stations
By analyzing:
- wave arrival times
- wave speed differences
they can determine:
- earthquake epicenter
- depth
- magnitude
This process is called earthquake triangulation.
How Seismographs Measure Magnitude
Large earthquakes create:
- stronger seismic waves
- larger wave amplitudes
- longer shaking duration
Scientists use seismograph data to calculate:
- Richter magnitude
- Moment Magnitude Scale (Mw)
Learn more → earthquake intensity scale comparison
Seismograph Recording Process
Seismograph Recording Process
Basic sequence of how earthquake waves are detected and recorded.
| Stage | Activity |
|---|---|
| Earthquake begins | 3 |
| P waves arrive | 5 |
| S waves arrive | 8 |
| Surface waves arrive | 10 |
| Shaking decreases | 2 |
Global Seismograph Networks
Countries around the world operate seismic monitoring networks
These systems continuously monitor:
- earthquakes
- volcanic activity
- tectonic movement
Major organizations include:
- USGS
- Japan Meteorological Agency
- European seismic centers
Earthquake monitoring happens 24 hours a day worldwide.
Why Seismographs Are Important
Seismographs help scientists:
- detect earthquakes quickly
- improve hazard monitoring
- study Earth’s interior
- support tsunami warning systems
They are also essential for:
- earthquake engineering
- disaster response
- scientific research
Learn more → earthquake monitoring technology
Seismographs and Earthquake Early Warning
Some countries use seismographs for earthquake early warning systems
The instruments detect:
- fast-moving P waves
before - stronger shaking arrives
This may provide:
- several seconds of warning
- time for protective actions
Learn more → earthquake early warning systems
It records ground motion caused by seismic waves.
A seismogram is the recorded earthquake wave pattern.
They measure relative movement between the ground and a suspended mass.
They help scientists detect, study, and monitor earthquakes worldwide.
Final Thoughts
Seismographs are essential scientific instruments that allow researchers to detect and study earthquakes in incredible detail.
By recording seismic waves and ground motion, these instruments help scientists locate earthquakes, measure magnitude, monitor tectonic activity, and improve earthquake warning systems worldwide.
Modern seismographs continue to play a major role in advancing earthquake science and improving disaster preparedness.
